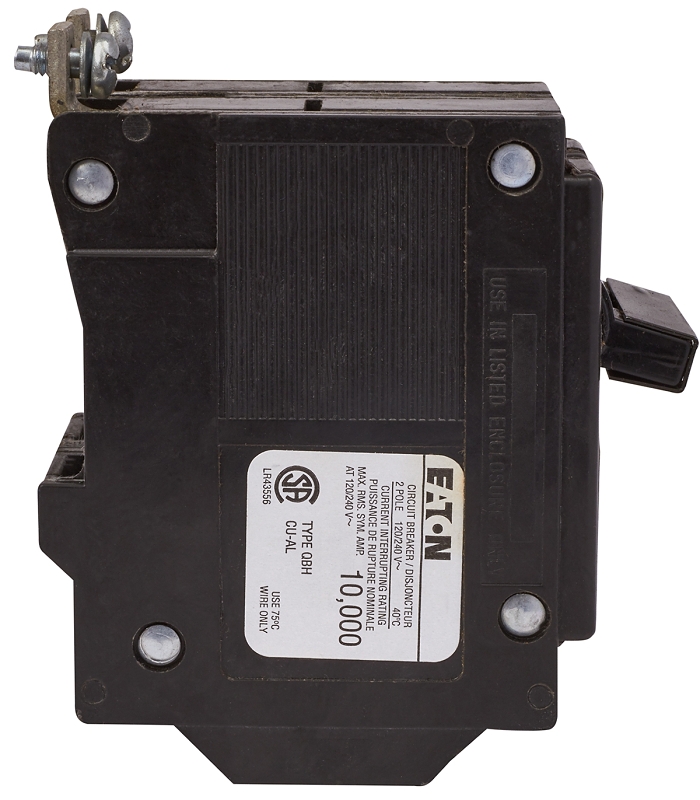

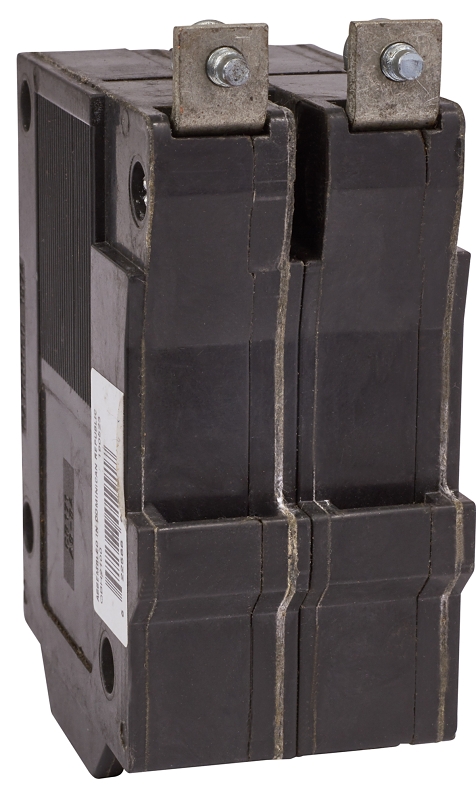

Eaton QBH260 Replacement Classic Circuit Breaker, Type QBH, 60 A, 2-Pole, 120/240 VAC

Eaton

$81.15~~$81.15~~

Actuator Type: Quick-Break Quick-Make
Current Rating: 60 A
Dimensions: 3 in L x 1-1/2 in W x 3-1/4 in H
Interrupt Rating: 10 kA
Number of Phases: 1
Model #: QBH260
UPC #: 622588001509
SKU: 7405889

Your shopping list will be used for pickup in-store

Product Details

Eaton Replacement Classic Circuit Breaker, Type QBH, 120/240 VAC, 60 A, Number of Phases: 1, Number of Poles: 2, Interrupt Rating: 10 kA, Actuator Type: Quick-Break, Quick-Make, Trip Type: Common, Long Time, Instantaneous, Wire Size: 10 to 2, 10 to 1 AWG, Terminal Type: Bolt-On, Dimensions: 3 in L x 1-1/2 in W x 3-1/4 in H, Operating Temperature: 40 deg C, Suitable for: Classic CEB, Sylvania or Commander Electric Design Bolt-On Load Centers, Lighting and Distribution Panelboards and Meter Centers

Key Features

3/4 in form factor
Silver tungsten contacts with wiping action to prevent carbon buildup on the contact surface
Handle provides clear indication of ON/OFF/TRIPPED position
Quick-make/quick-break mechanism provides tease-proof operation
Internal common trip mechanism
Each breaker is electronically calibrated for 40 deg C
Compression molded housing and handle for durability and service

Item Specifications

Actuator Type	Quick-Break Quick-Make
Current Rating	60 A
Dimensions	3 in L x 1-1/2 in W x 3-1/4 in H
Interrupt Rating	10 kA
Number of Phases	1
Number of Poles	2
Operating Temperature	40 deg C

Suitable for	Classic CEB Sylvania or Commander Electric Design Bolt-On Load Centers Lighting and Distribution Panelboards and Meter Centers
Terminal Type	Bolt-On
Trip Type	Common Long Time Instantaneous
Type	Type QBH
Voltage Rating	120/240 VAC
Wire Size	10 to 2 10 to 1 AWG
