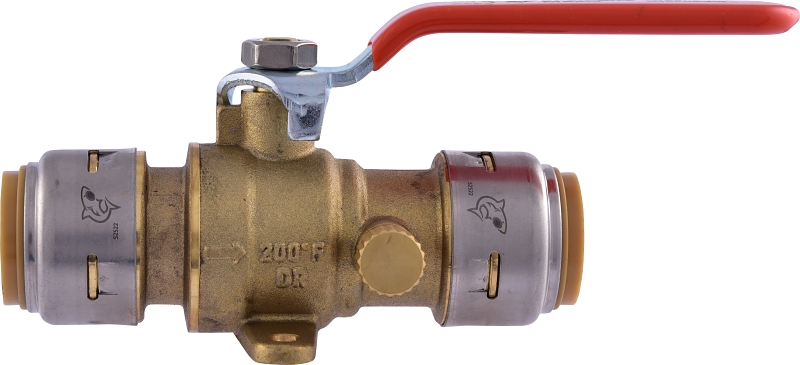

SharkBite Max UR24616 Ball Valve with Drain and Drop-Ear, 3/4 in Connection, 250 psi Pressure, DZR Brass Body

SharkBite

SharkBite Max UR24616 Ball Valve with Drain and Drop-Ear, 3/4 in Connection, 250 psi Pressure, DZR Brass Body

SharkBite Max UR24616 Ball Valve with Drain and Drop-Ear, 3/4 in Connection, 250 psi Pressure, DZR Brass Body
  • Body Material: DZR Brass
  • Connection Size: 3/4 in
  • Dimensions: 5.7 in L x 2.4 in W
  • Handle Material: Steel
  • Media: Water
  • Model #: UR24616CA
  • UPC #: 697285082083
  • SKU: 3072709

Your shopping list will be used for pickup in-store

Product Details

SharkBite Max ball valves with mounting tabs feature a drain/vent that allows for water to be drained from the line if needed and a mounting tab for stability when attaching the plumbing fixture to other surfaces. Compatible with PEX, copper, CPVC, PE-RT and HDPE SDR-9 pipe. Innovative push-to-connect design makes for quick and easy installation. Faster install time and ease of use reduces installation errors.

Key Features

  • Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
  • Half the insertion effort, double the burst pressure
  • Can be installed on wet lines and pressure tested immediately
  • Stainless steel retainer adds strength and durability
  • High-performance DZR lead-free brass body
  • No special tools, crimping, soldering or glue required
  • Can be rotated after installation
  • No tube liner required for PEX
  • Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool

Item Specifications

Body MaterialDZR Brass
Connection Size3/4 in
Dimensions5.7 in L x 2.4 in W
Handle MaterialSteel
MediaWater
Pressure Rating250 psi
Softgoods materialEPDM/PTFE
Suitable forPEX Copper CPVC PE-RT and HDPE Pipes
Temperature Rating200 deg F
Trim MaterialDZR Brass/Stainless Steel
MORE DETAILS:
  • Application: For residential and commercial potable water, recirculation, hydronic heating/cooling and direct burial
  • Warranty: 25 Year PEX, Copper, CPVC, PE-RT, 5 Year HDPE SDR-9
